threejs全景看房

背景

做物联网智能家居场景的时候，有个需求，类似全景看房，房内有我们智能家居设备的展示

前端实现

参考链接：https://www.cnblogs.com/dragonir/p/17301683.html
参考链接：https://www.zhihu.com/tardis/bd/art/692857119?source_id=1001

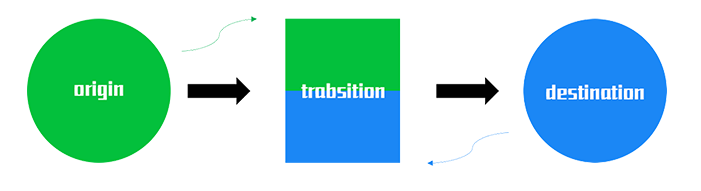

实现原理示意图如下所示，页面总共将创建 3 个场景，origin 表示当前场景，destination 表示目标场景，利用当前场景和目标场景合成用于展示过渡效果的 transition 过渡场景，当点击切换房间按钮时，三个场景的加载顺便分别为 origin -> transition -> destiontion，由此在视觉上形成从上个房间切换到下个房间并且伴随渐变过渡的场景漫游效果。

1.渲染一个场景

const width = window.innerWidth
const height = window.innerHeight

// 创建一个场景
const scene = new THREE.Scene()

// 创建一个透视相机
const camera = new THREE.PerspectiveCamera(75, width / height, 0.1, 1000)

// 创建一个球体。节点数量越大，需要计算的三角形就越多，影响性能
const sphereGeometry = new THREE.SphereGeometry(/*半径*/50, /*垂直节点数量*/50, /*水平节点数量*/50);

// 创建一个材质
const material = new THREE.MeshBasicMaterial({
  map: new THREE.TextureLoader().load('./images/kanfang1.jpg'), // 加载一整张纹理图片, 360全景图
  side: THREE.DoubleSide
});

// 声明球体纹理为全景图。将球体添加到场景
const sphere = new THREE.Mesh(sphereGeometry, material);
scene.add(sphere);

// 离屏渲染
const renderTargetParameters = {
  format: THREE.RGBAFormat,
  minFilter: THREE.LinearFilter,
  magFilter: THREE.LinearFilter,
  stencilBuffer: false,
};
fbo = new THREE.WebGLRenderTarget(width, height, renderTargetParameters);

// 创建一个渲染器
const renderer = new THREE.WebGLRenderer({
  antialias: true // 是否执行抗锯齿
})
renderer.setSize(width, height) // 设置canvas宽高
document.body.appendChild(renderer.domElement) // 将canvas元素添加到文档中

// 控制相机
const controls = new OrbitControls(camera, renderer.domElement) // 创建相机控制器，用鼠标键盘来来控制相机
controls.enableDamping = true // 使动画循环使用时阻尼或自转 意思是否有惯性
controls.dampingFactor = 1 // 动态阻尼系数 就是鼠标拖拽旋转灵敏度
controls.enableZoom = true // 是否可以缩放
controls.autoRotate = false // 是否自动旋转
controls.minDistance = 10 // 设置相机距离原点的最近距离
controls.maxDistance = 100 // 设置相机距离原点的最远距离
controls.enablePan = false // 是否开启右键拖拽
camera.position.set(0, 0, 1)
const target = new THREE.Vector3(50, 0, -50); // 设置lookAt的目标点
camera.lookAt(target);

// 渲染场景的方法
function render(type) {
  // controls.update()
  renderer.setRenderTarget(null);
  if (type != 'trans') {
    renderer.setRenderTarget(null);
  } else {
    renderer.setRenderTarget(fbo);
    renderer.clear();
  }
  console.log('render')
  renderer.render(scene, camera) // 渲染场景
}

2.目标场景

// 创建目标场景
const sceneDestination = new THREE.Scene();

// 创建一个球体。节点数量越大，需要计算的三角形就越多，影响性能
const sphereGeometry1 = new THREE.SphereGeometry(/*半径*/50, /*垂直节点数量*/50, /*水平节点数量*/50);

// 创建一个材质
const material1 = new THREE.MeshBasicMaterial({
  map: new THREE.TextureLoader().load('./images/kanfang2.jpg'), //加载一整张纹理图片
  side: THREE.DoubleSide
});

// 声明球体纹理为全景图。将球体添加到场景
const sphere1 = new THREE.Mesh(sphereGeometry1, material1);
sceneDestination.add(sphere1);

// 离屏渲染
fbo2 = new THREE.WebGLRenderTarget(width, height, {
  format: THREE.RGBAFormat,
  minFilter: THREE.LinearFilter,
  magFilter: THREE.LinearFilter,
});

// 渲染目标场景
function render2(type) {
  // controls.update()
  if (type != 'trans') {
    renderer.setRenderTarget(null);
  } else {
    renderer.setRenderTarget(fbo2);
    renderer.clear();
  }
  console.log('render2')
  renderer.render(sceneDestination, camera) // 渲染场景
}

3.创建过渡场景

// 过渡的参数
const transitionParams = {
  // 过渡进程，从0-1
  transition: 0,
  // 过渡纹理
  texture: undefined,
  // 是否使用纹理
  useTexture: false,
  // 过渡速度
  transitionSpeed: 0.03,
  // 是否开始动画
  animate: false,
};
// 创建过渡场景
const sceneTransition = new THREE.Scene();
const materialTransition = new THREE.ShaderMaterial({
  uniforms: {
    tDiffuse1: {
      value: null,
    },
    tDiffuse2: {
      value: null,
    },
    mixRatio: {
      value: 0.0,
    },
    threshold: {
      value: 0.1,
    },
    useTexture: {
      value: false,
    },
    tMixTexture: {
      value: transitionParams.texture,
    },
  },
  // 顶点着色器，这是glsl语言在js中以字符串方式引入进来
  vertexShader: `
    varying vec2 vUv;
    void main() {
        vUv = vec2( uv.x, uv.y );
        gl_Position = projectionMatrix * modelViewMatrix * vec4( position, 1.0 );
    }
  `,
  // 片着色器
  fragmentShader: `
    uniform float mixRatio;
    uniform sampler2D tDiffuse1;
    uniform sampler2D tDiffuse2;
    uniform sampler2D tMixTexture;
    uniform bool useTexture;
    uniform float threshold;
    varying vec2 vUv;
    void main() {
        vec4 texel1 = texture2D( tDiffuse1, vUv );
        vec4 texel2 = texture2D( tDiffuse2, vUv );
        if (useTexture==true) {
            vec4 transitionTexel = texture2D( tMixTexture, vUv );
            float r = mixRatio * (1.0 + threshold * 2.0) - threshold;
            float mixf=clamp((transitionTexel.r - r)*(1.0/threshold), 0.0, 1.0);
            gl_FragColor = mix( texel1, texel2, mixf );
        } else {
            gl_FragColor = mix( texel2, texel1, mixRatio );
        }
    }
  `,
})
const finalMesh = new THREE.Mesh(new THREE.PlaneGeometry(1, 1), materialTransition);
sceneTransition.add(finalMesh);

// 创建过渡正交相机
let frustumSize = 1;
const cameraTransition = new THREE.OrthographicCamera(frustumSize / -2, frustumSize / 2, frustumSize / 2, frustumSize / -2, -1000, 1000);

// 渲染场景
const render3 = () => {
  requestAnimationFrame(render3)
  if (transitionParams.transition === 0) {
    if (currentScene === 'first') render();
    if (currentScene === 'second') render2();
  } else if (transitionParams.transition >= 1) {
    // 这里实现两个固定场景切换
    currentScene = currentScene === 'first' ? 'second' : 'first'
    document.getElementById('button').innerHTML = currentScene === 'first' ? '进入户型2' : '进入户型1'
    setTimeout(() => {
      transitionParams.animate = false;
      transitionParams.transition = 0;
    }, 10);
    currentScene === 'first' && render();
    currentScene === 'second' && render2();
  } else {
    render('trans');
    render2('trans')
    renderer.setRenderTarget(null);
    renderer.clear();
    renderer.render(sceneTransition, cameraTransition);
  }
  if (transitionParams.animate && transitionParams.transition <= 1) {
    // 动画还在执行过程中
    transitionParams.transition = transitionParams.transition + transitionParams.transitionSpeed;
    materialTransition.uniforms.mixRatio.value = transitionParams.transition;
  }
}
render3()

const update = (params, f1, f2) => {
  console.log('fbo2.texture', fbo2.texture)
  console.log('fbo.texture', fbo.texture)
  // 动画正在执行中
  if (transitionParams.animate) return false;
  const { transitionSpeed = 0.03, texture, useTexture = false } = params;
  transitionParams.texture = texture;
  transitionParams.useTexture = useTexture;

  transitionParams.transition = 0;
  transitionParams.transitionSpeed = transitionSpeed;
  transitionParams.animate = true;
  materialTransition.uniforms.tDiffuse1.value = f1.texture;
  materialTransition.uniforms.tDiffuse2.value = f2.texture;
  materialTransition.uniforms.threshold.value = 0.1;
  materialTransition.uniforms.mixRatio.value = 0.0;
  materialTransition.uniforms.tMixTexture.value = texture;
  materialTransition.uniforms.useTexture.value = useTexture;
  return true;
}

document.getElementById('button').onclick = function() {
  // 这里实现两个固定场景切换
  if (currentScene === 'first') update(transitionParams, fbo2, fbo);
  else update(transitionParams, fbo, fbo2);
}
